Features

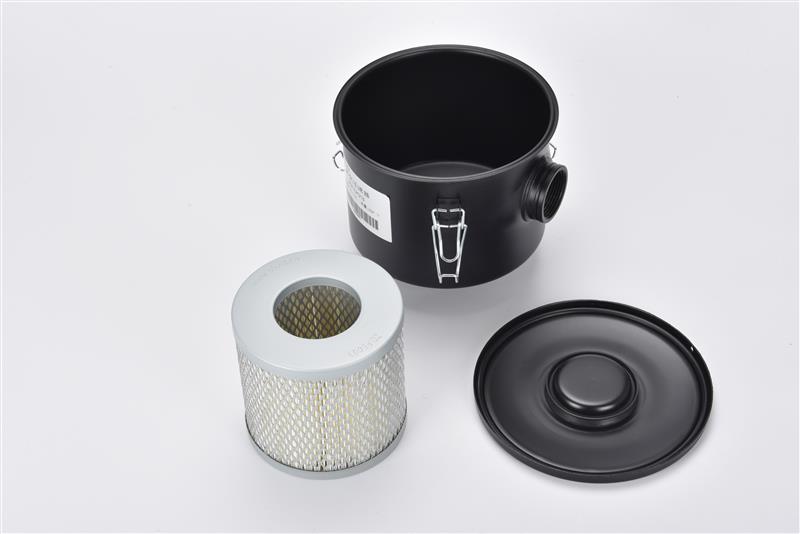

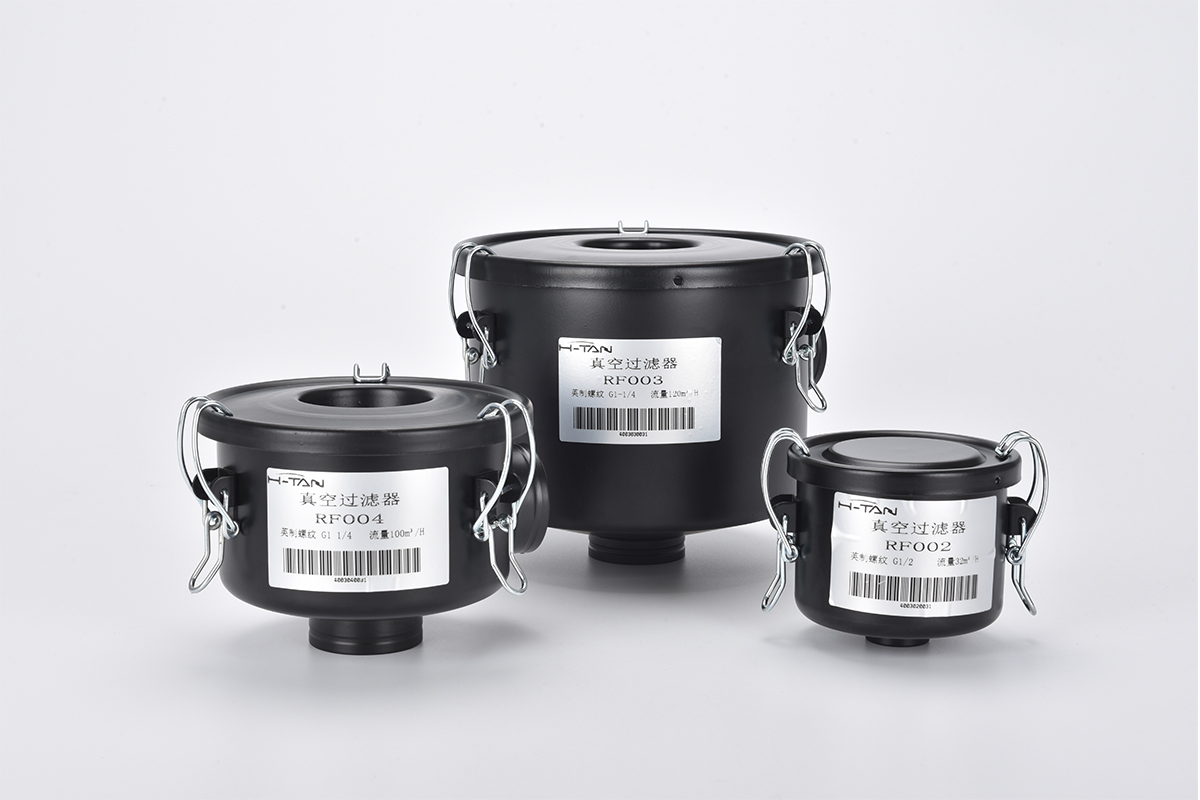

Large-flow Vacuum Filter
It can effectively prevent solid particles or dust from being sucked into the vacuum generator or system, reduce wear, improve operation reliability, extend the lifetime of the vacuum generator, and also effectively protect components of the vacuum system (such as vacuum valve, vacuum gauge, etc.)
All-steel structure, sturdy and durable, suitable for heavy load requirements of industrial use, adopts seamless tensile metal housing with copper welding joint, which has the advantages of high air tightness, large space for dirt, easy cleaning, easy replacement of filter element, and quick inlet and outlet with threaded connection
Various nominal flow rates for option
Selection Guide
RPF Series Vacuum Accessories
RPF 002
① ②
| ① Series | ② Nominal flow |
| RPF | 002 - 32m³/h |
| 002-1 - 42m³/h | |
| 003 - 120m³/h | |
| 004 - 100m³/h | |
| 006 - 300m³/h |

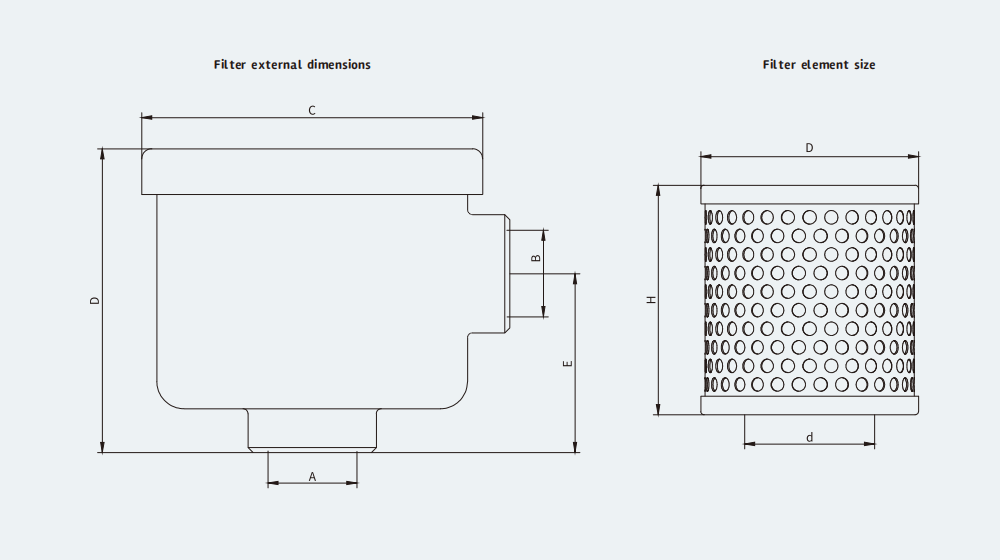

Dimensions
Large-flow Vacuum Filter
| Model | RPF002 | RPF002-1 | RPF003 | RPF004 |
RPF006 |
| Nominal flow | 32m³/h | 42m³/h | 120m³/h | 100m³/h | 300m³/h |
| A | G1/2'' | G3/4'' | G1 1/4'' | G1 1/4'' | G2'' |
| B | G1/2'' | G3/4'' | G1 1/4'' | G1 1/4'' | G2'' |
| C | φ101 | φ101 | φ185 | φ146 | φ222 |
| D | 90 | 90 | 170 | 110 | 258 |
| E | 53 | 53 | 115 | 70 | 125 |
| Weight | 1000g | 1000g | 2300g | 1400g | 6900g |
| Consumables | RE002 | RE002 | RE003 | RE004 | RE006 |
| Outer dia. | φ65 | φ65 | φ128 | φ98 | φ150 |
| Inner dia. | φ38 | φ38 | φ64 | φ60 | φ88 |
| Hight H | 69 | 69 | 125 | 70 | 222 |
Mounting Accessories
Large-flow Vacuum Filter
| Item | Model | Applicable vacuum filter |

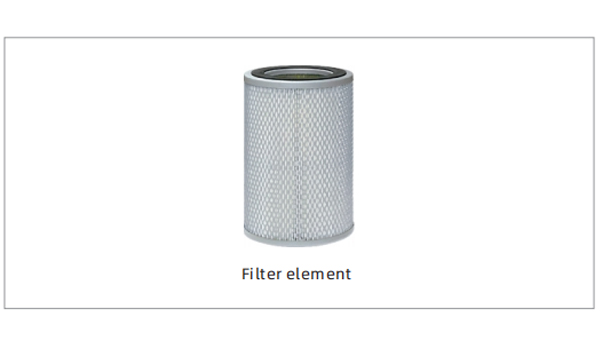

| Filter element | RE002 | RPF002/RPF002-1 |
| RE003 | RPF003 | |
| RE004 | RPF004 | |
| RE006 | RPF006 |
