Features

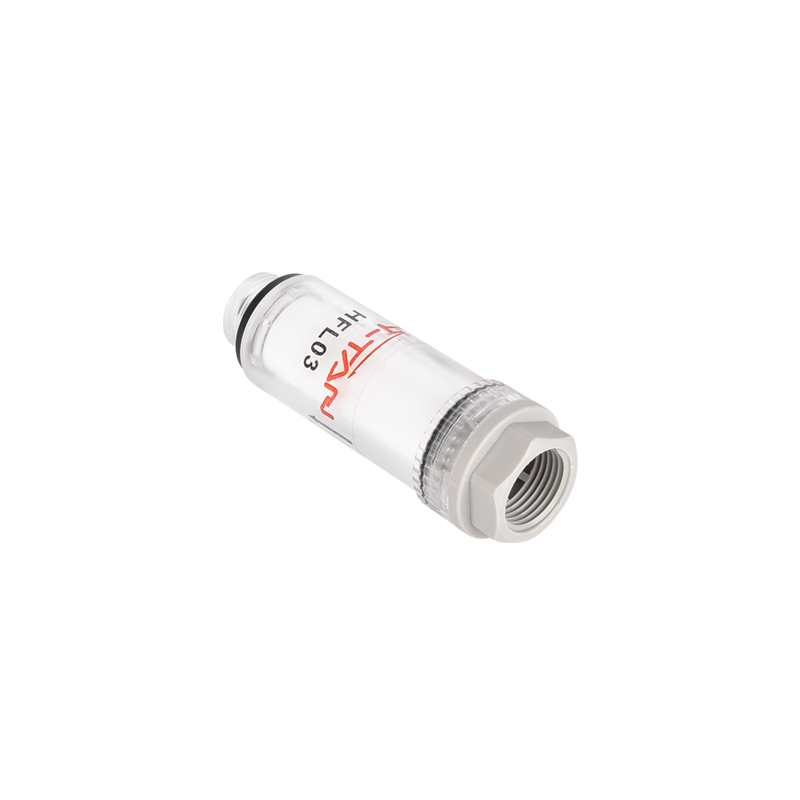

Inline Vacuum Filter
●Filter dust and other small particles from the vacuum port
●Transparent housing, easy to indicate the degree of contamination
●Compact structure and small size, lightweight, economic and environmental protective
●It can be connected directly to the vacuum port of the vacuum generator, such as BM and BX, etc.
Selection Guide
HFL Series Vacuum Accessories
HFL -03
① ②
| ① Series | ② Specifications |
| HFL |
03 - G3/8 male thread |
Technical parameters
| Model | Connection thread | Ambient and fluid temperature | Safety pressure range | Removal efficiency |
| HFL-03 | G3/8 |
5~50℃ |
-100~0kPa | 10μm |

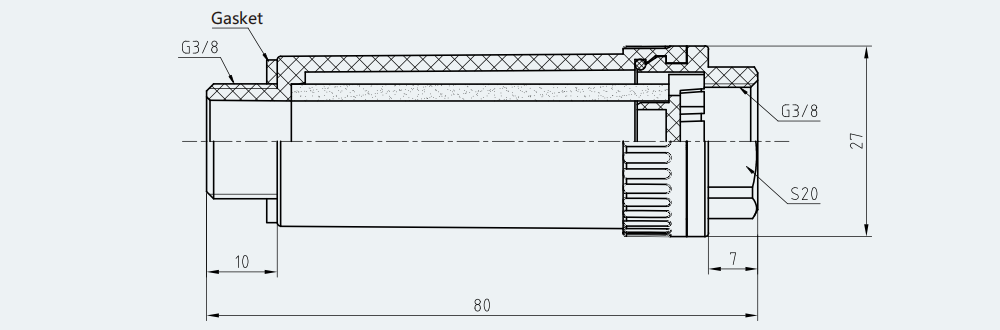

Dimensions
Inline Vacuum Filter
