Features

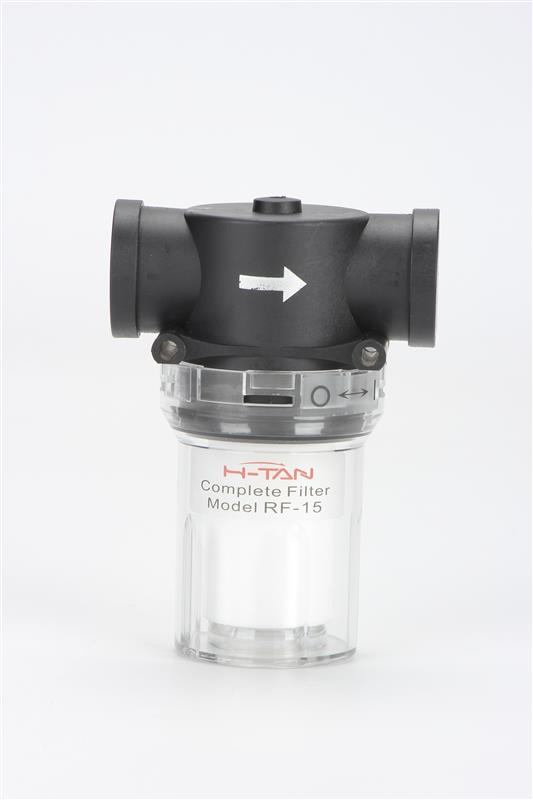

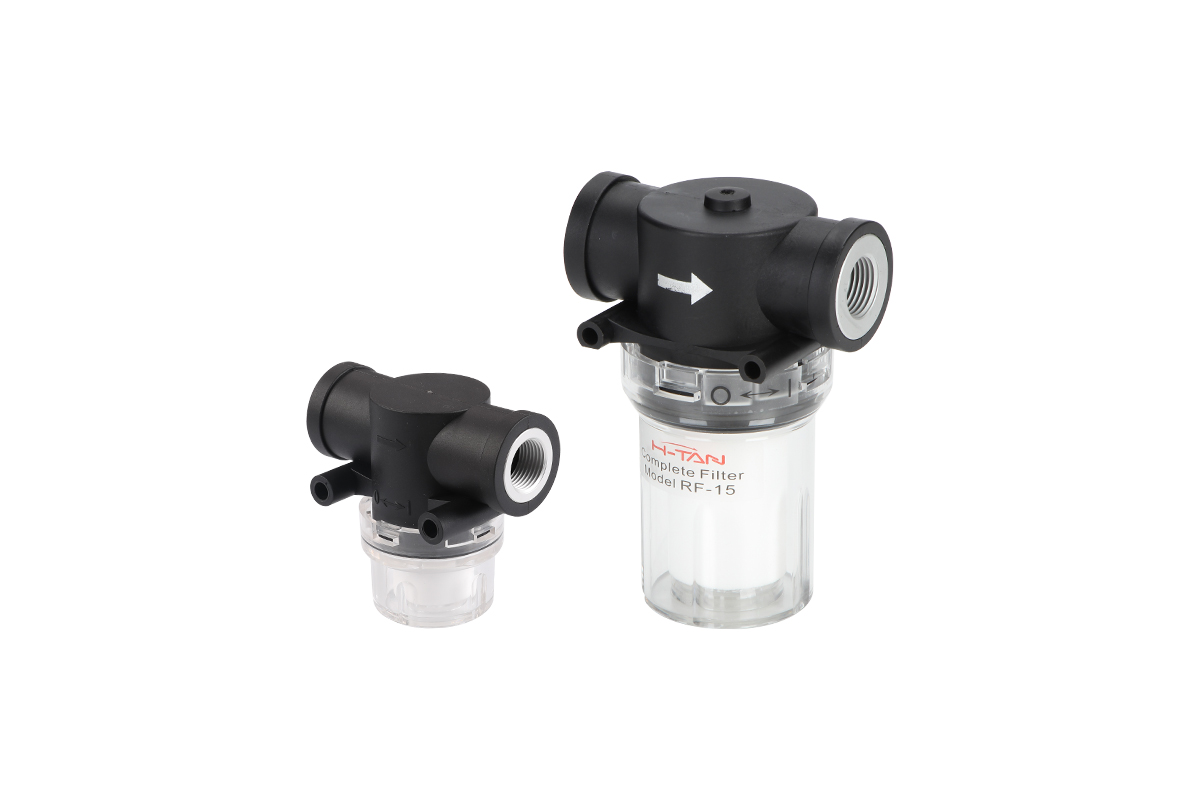

Universal Vacuum Filter
Filter dust and other particles from the vacuum port
Transparent housing, easy to check the degree of contamination
Filter elements could be replaced
Different nominal flow for option
Suitable for vacuum systems with light and medium pollution level
Could be used as a prefilter, it can effectively filter dust with different degrees
Selection Guide
RF Series Vacuum Accessories
RF -10 -□
① ② ③
| ① Series | ② Connection specifications |
③ Filter element |
| RF | 10 - G3/8 female thread | / - Default,PE 10μm |
| 15 - G1/2 female thread | S - SUS304 200 mesh count | |
| 20 - G3/4 female thread |
Technical parameters
| Model | Pressur range | Material | Temperature range | Filter fineness | Nominal flow rate NL/min |
Internal vacuum volume cm³ |
Filter area m² | Weight g |
| RF-10 | -100~0kPa |
Housing - PA Filter cup - PC Filter element - PE |
-20~80℃ |
10μm | 150 | 45 | 0.003 | 70 |
| RF-15 | 900 | 195 | 0.010 | 168 | ||||
| RF-20 | 900 | 205 | 0.010 | 170 | ||||
| RF-10-S |
Housing - PA Filter cup - PC Filter element - SUS304 |
200mesh count |
200 | / | / | / | ||
| RF-15-S | 1200 | / | / | / | ||||
| RF-20-S | 1200 | / | / | / |

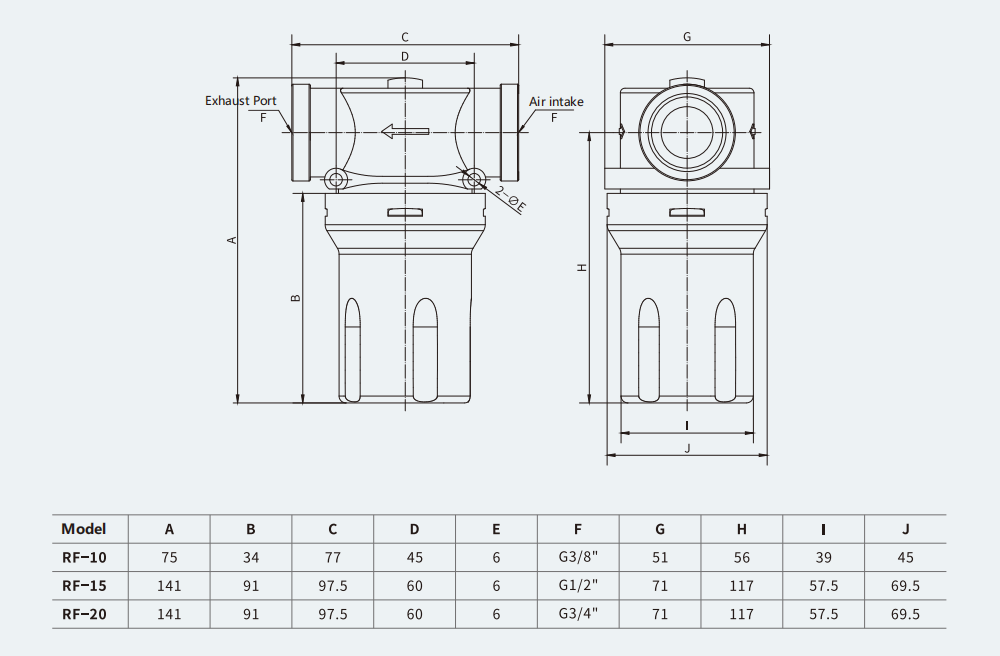

Dimensions
Universal Vacuum Filter
Mounting Accessories
Universal Vacuum Filter
| Item | Model | Material | Applicable vacuum filter |

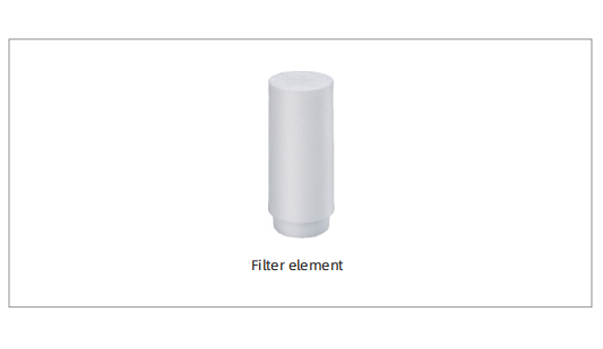

| Filter element | RF15-07 |
PE | RF-15 |
| RF20-03 | RF-20 | ||
| RF10-03 | RF-10 | ||
| RF20-200M | SUS304 | RF-15-S/RF-20-S | |
| RF10-200M | RF-10-S |
