Features

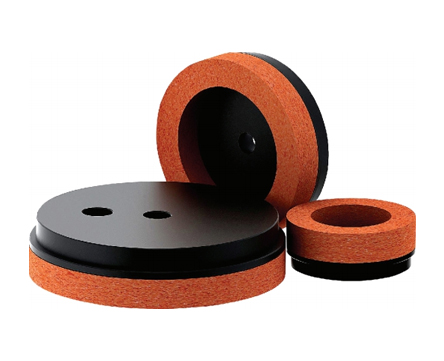

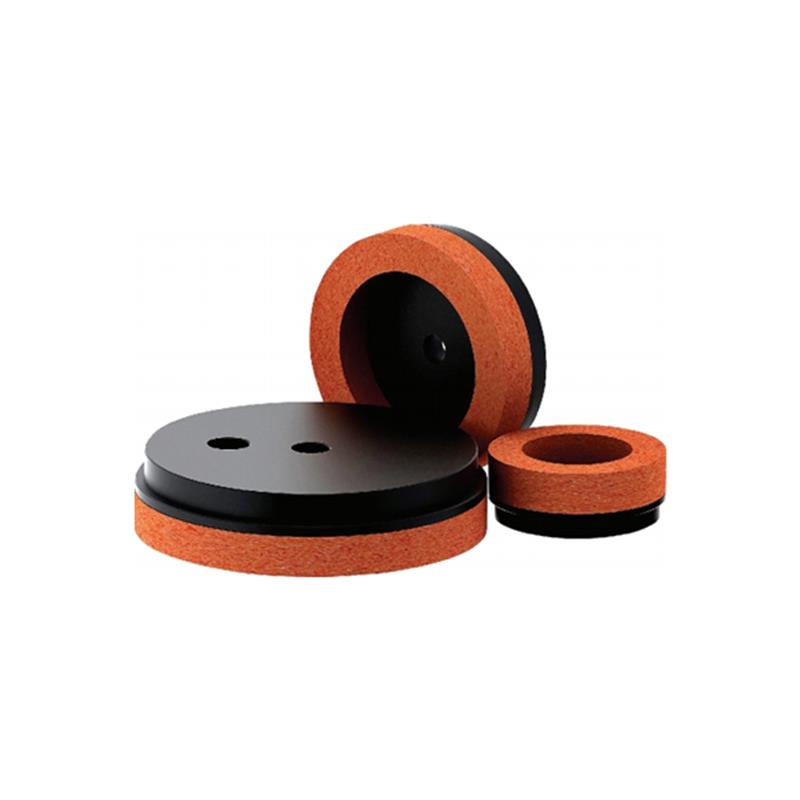

Foam Suction Cups
●Annular foam rubber
●Metal support plate
●Available in various sizes
●NF(black) for Neoprene foam rubber, OF(orange) for Geranium foam rubber
Selection Guide
HOP Series Vacuum Suction Cup
HOP 64 NF -□
① ② ③ ④
| ① Series | ② Specifications |
③ Material | ④ Thickness |
| HOP |
40 - φ40mm | NF - Neoprene foam rubber(black) | 5 - 5mm |
| 64 - φ64mm | OF - Geranium foam rubber(orange) | 10 - 10mm | |
| 92 - φ92mm | 15 - 15mm(Default) | ||
| 127 - φ127mm | 20 - 20mm | ||
| 180 - φ180mm | |||
| 220 - φ220mm |
Selection
| Model |
Connectionspecifications | ||
| G2F | G3F | G4F | |
| HOP40□ | HOP40□-G2F |
/ |
/ |
| HOP60□ | HOP64□-G2F |
/ |
/ |
| HOP92□ |
/ |
HOP92□-G2F |
/ |
| HOP127□ |
/ |
/ |
HOP127□-G4F |
| HOP180□ |
/ |
/ |
HOP180□-G4F |
| HOP220□ |
/ |
/ |
HOP220□-G4F |

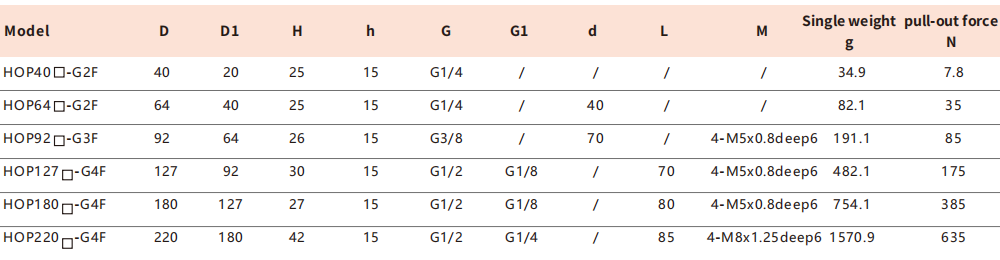

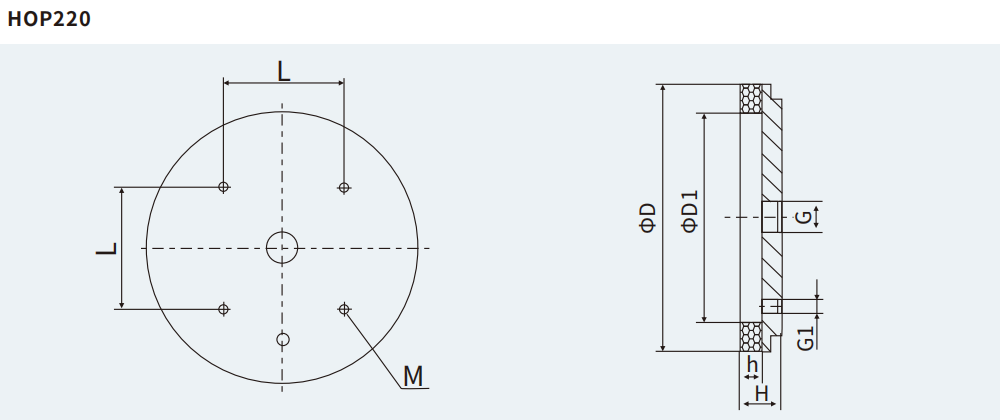

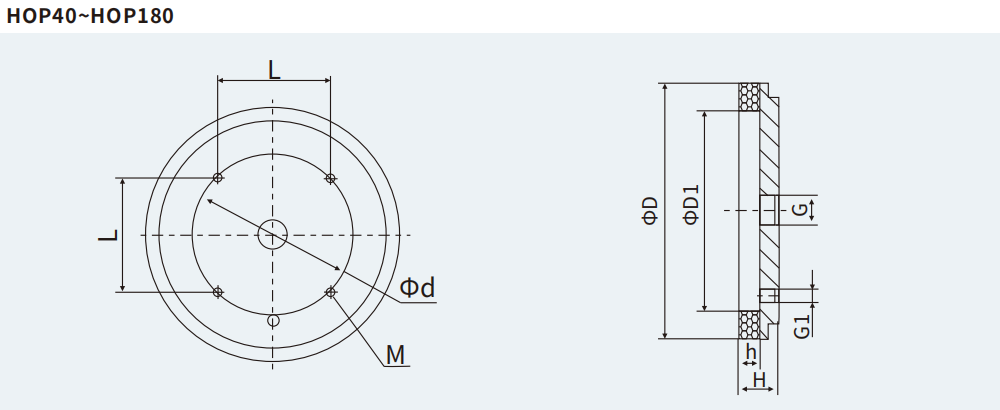

Dimensions
Foam Suction Cups
※NOTE:1. Measure the vacuum degree to -60kPa, and the surface of the workpiece is smooth and clean. The above pull out force data does not include safety factors. The data may vary depending on the surface condition of the workpiece. It is recommended to keep the vacuum tube as short as possible, with a length not exceeding 2m. 2. The dimensional tolerance comply with the requirements of GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard.
