Features

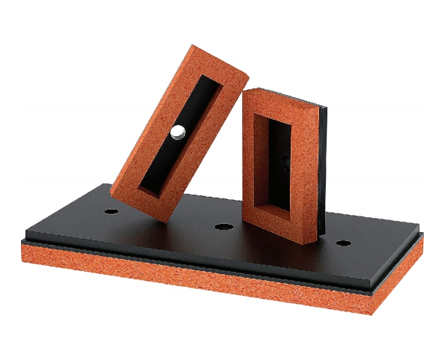

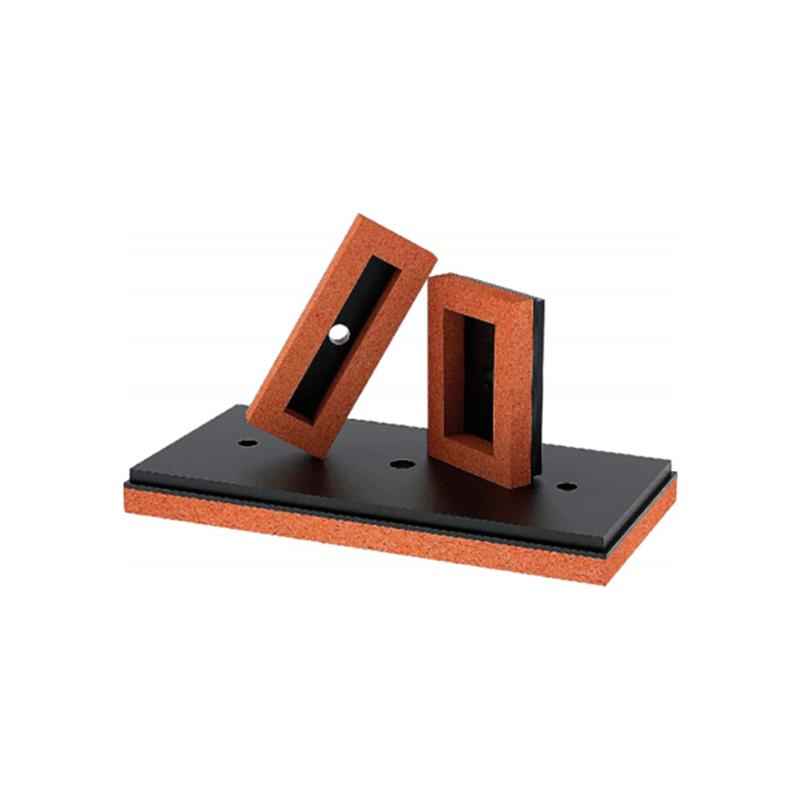

Foam Suction Cups
●Annular foam rubber
●Metal support plate
●Available in various sizes
●NF(black) for Neoprene foam rubber, OF(orange) for Geranium foam rubber
Selection Guide
HNP Series Vacuum Suction Cup
HNP 50×135 NF -□
① ② ③ ④
| ① Series | ② Specifications |
③ Material | ④ Thickness |
| HNP |
50×135 | NF - Neoprene foam rubber(black) | 5 - 5mm |
| 60×135 | OF - Geranium foam rubber(orange) | 10 - 10mm | |
| 75×107 | 15 - 15mm(Default) | ||
| 68×290 | 20 - 20mm | ||
| 140×290 |
Selection
| Model |
Connectionspecifications | ||
| G2F | G3F | G4F | |
| HOP50×135□ | HOP50×135□-G2F |
/ |
/ |
| HOP60×135□ | HOP60×135□-G2F |
/ |
/ |
| HOP75×107□ |
HOP75×107□-G2F |
/ |
/ |
| HOP68×290□ |
/ |
HOP68×290□-G3F |
/ |
| HOP140×290□ |
/ |
/ |
HOP140×290□-G4F |

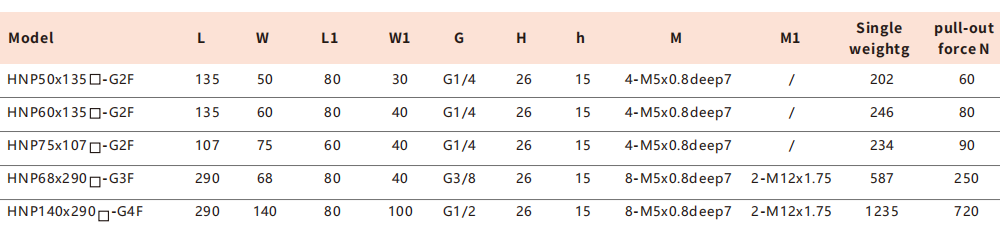

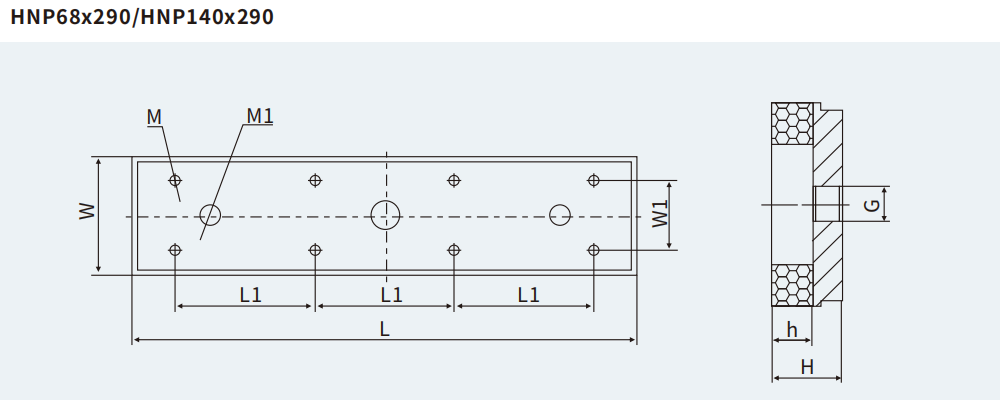

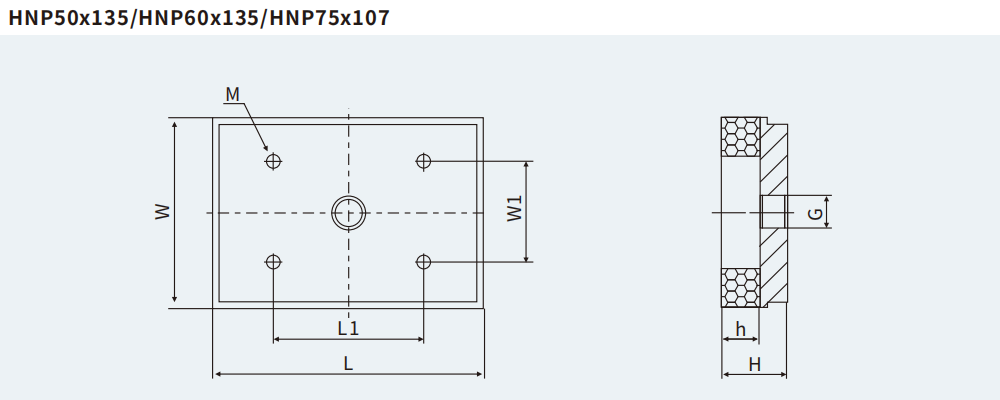

Dimensions
Foam Suction Cups
※NOTE:1. Measure the vacuum degree to -60kPa, and the surface of the workpiece is smooth and clean. The above pull out force data does not include safety factors. The data may vary depending on the surface condition of the workpiece. It is recommended to keep the vacuum tube as short as possible, with a length not exceeding 2m. 2. The dimensional tolerance comply with the requirements of GBT3672.1-2002-1 M3 rubber product dimensional tolerance standard.
