Features

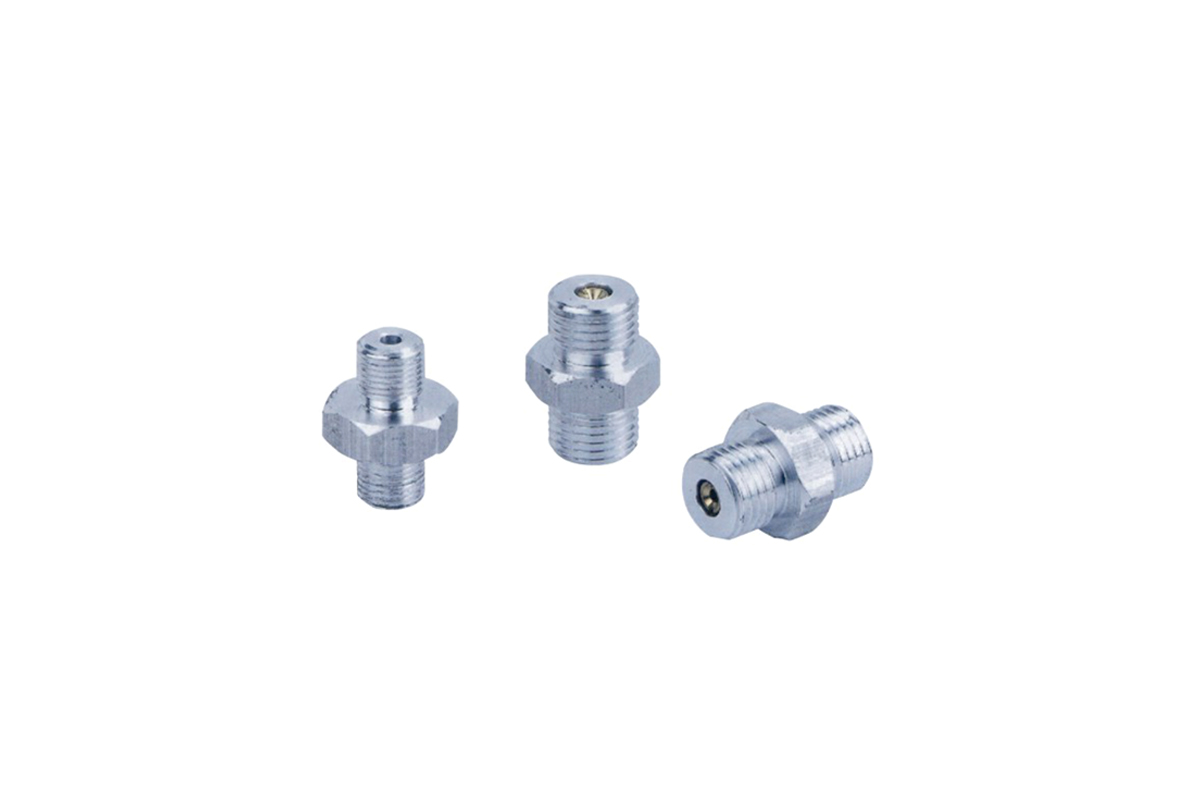

Throttle Valve
●Compact size, simple structure, suitable for a vacuum handling system in narrow space
●For a suction cup loop that does not cover the working surface, it can reduce vacuum leakage efficiently and ensure the stability of the system
Selection Guide
HZVT Series Vacuum Throttle Valve
HZVT 60 -G1M
① ② ③
| ① Series | ② Aperture diameter mm | ③ Connection specifications |
| HZVT |
25 - φ0.25 | G1M - G1/8 female thread |
| 40 - φ0.40 | G2M - G1/4 female thread | |
| 60 - φ0.60 | ||
| 80 - φ0.80 | ||
| 100 - φ1.00 | ||
| 120 - φ1.20 | ||
| 150 - φ1.50 | ||
| 200 - φ2.00 |
Technical parameters
| Item | parameter | Item | parameter |
|
Working medium |
Filtered compressed air |
Operating voltage | DC24V±10% |
|
Air supply pressure |
1.5~8.0bar |
Action Frequency |
5 times/s |
| Starting pressure | ≥1.5bar | Power | 3~4.8w |
| Operating temperature | -20~70℃ | Connection form | Outgoing type |
|
Body material |
Aluminum Alloy |
Protection Level | IP65 |
|
Manner of execution |
Pilot-operated type |
Lubrication |
Non-required |

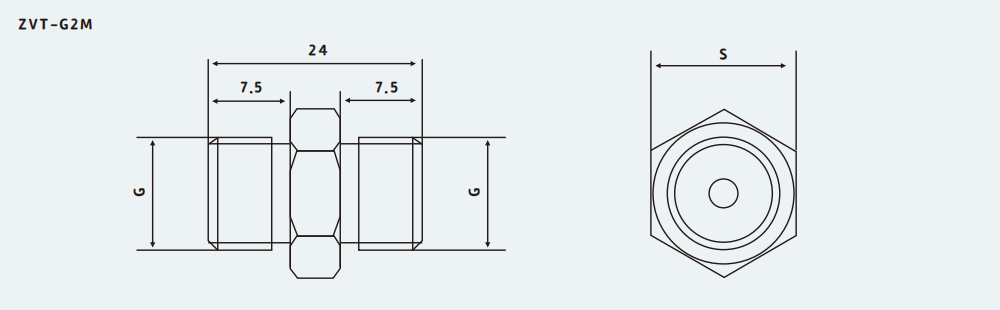

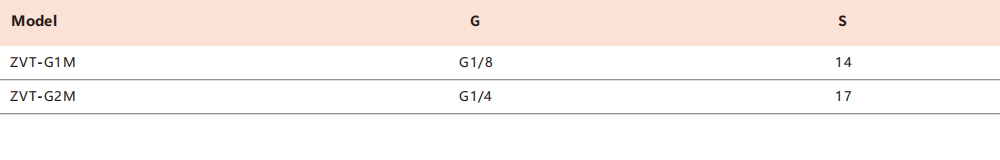

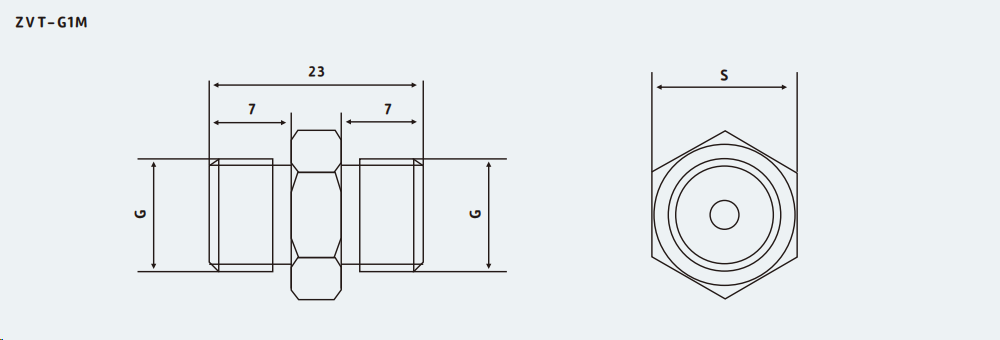

Dimensions
HZVT Series Vacuum Throttle Valve
