Features

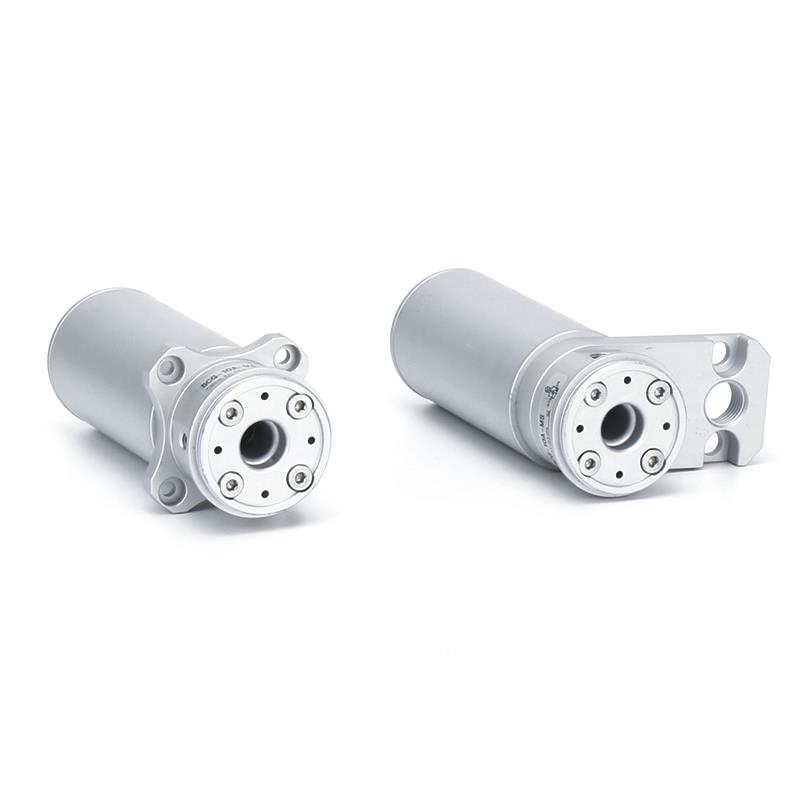

Large Flow Gripper
●Large vacuum flow
●Vertical and horizontal mounting types

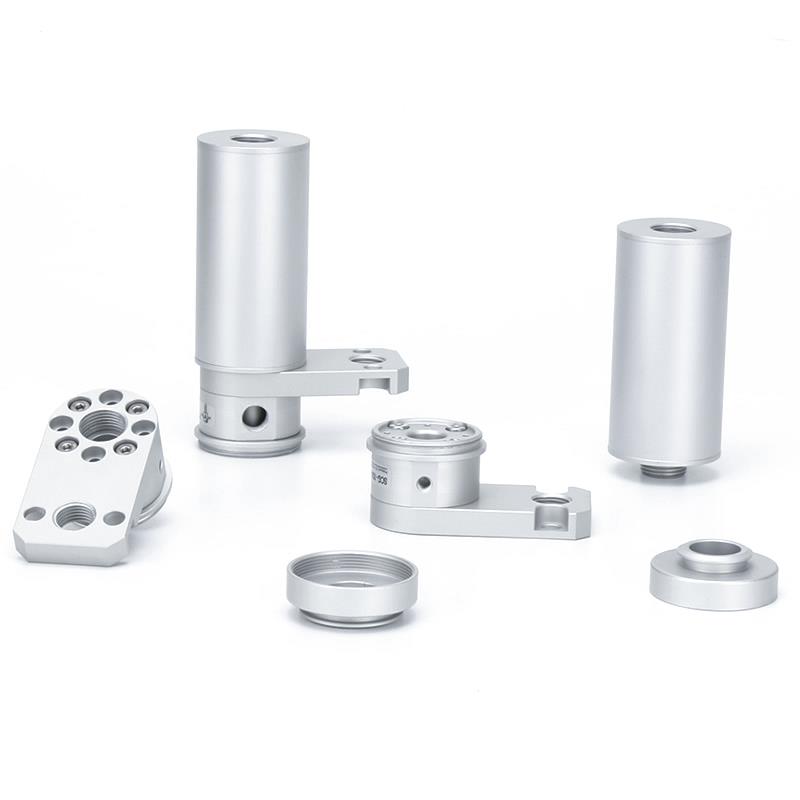

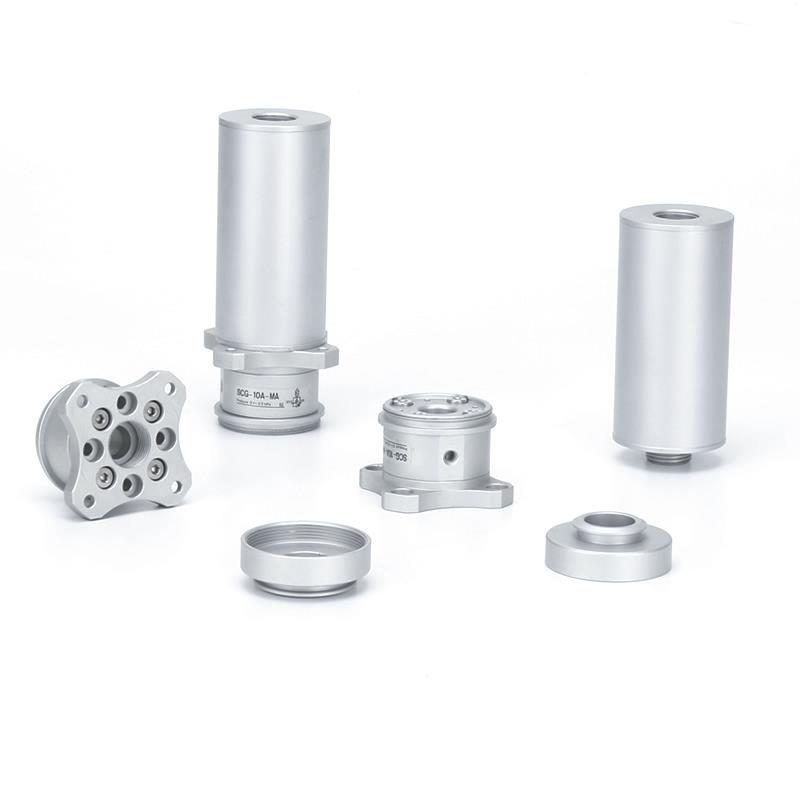

●Integrated with a vacuum generator, suction cup, silencer/pagoda fitting

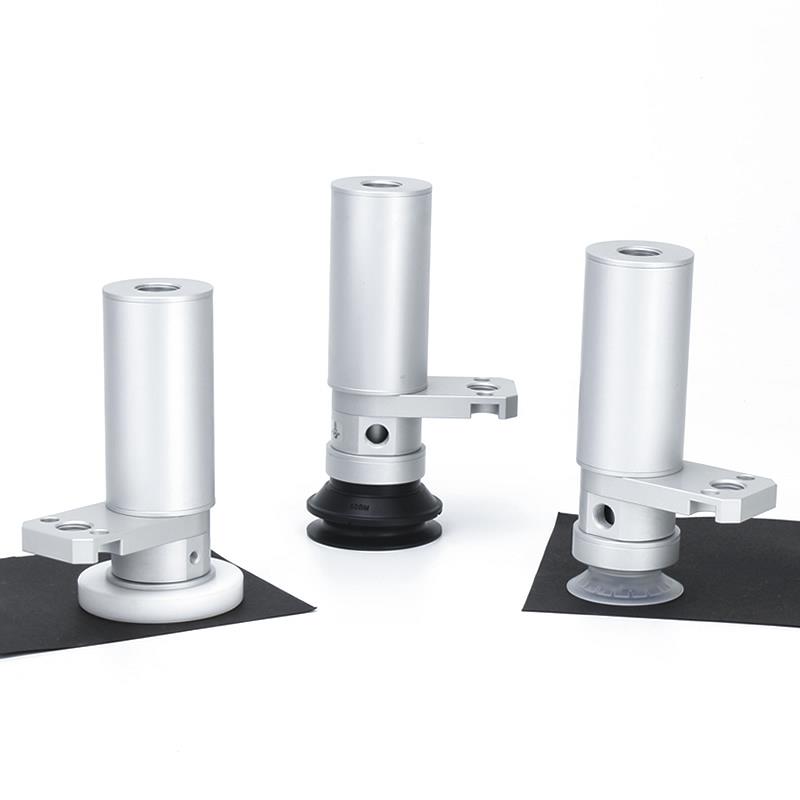

●Suction cup with rubber or POM material, flexible, high suction force, protect the surface of the workpiece
Selection Guide
HSCG Series Special Vacuum Gripper
HSCG -10 MA -40UM N
① ② ③ ④ ⑤
| ① Series | ② Minimum diameter |
③ Installation method | ④ Dia. of suction cup | ⑤ Material of suction cup |
| HSCG |
10 - φ10 | MA - Axial installation |
SF40 - φ42 (POM) | P - POM |
| SF60 - φ60 (POM) | ||||
| 32UM - φ32 single-layer suction cup | N - NBR S - Silicone |
|||
| 40UM - φ40 single-layer suction cup | ||||
| MS - Lateral installation |
50UM - φ50 single-layer suction cup | |||
| 32BM - φ32 double-layer suction cup | ||||
| 40BM - φ40 double-layer suction cup | ||||
| 50BM - φ50 double-layer suction cup |
Technical parameters
| Model |
Min. dia. mm | Max. flow rate NL/min | Air consumption NL/min | Recommended dia. of hose mm | Standard supply pressure bar |
| SCG-10MA | φ10 | 270~650 | 40~200 |
4 |
1~5 |
| SCG-10MS |

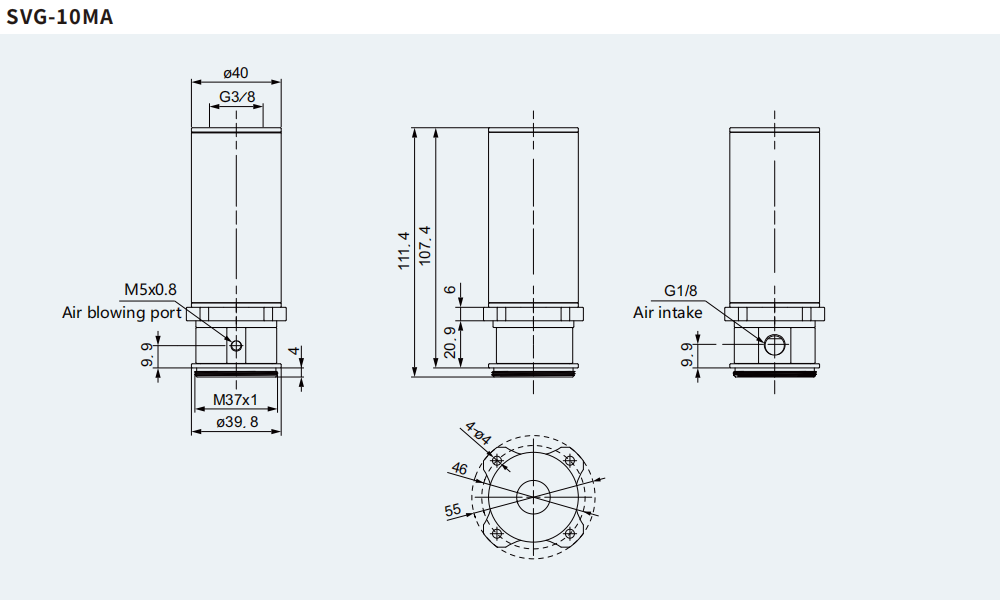

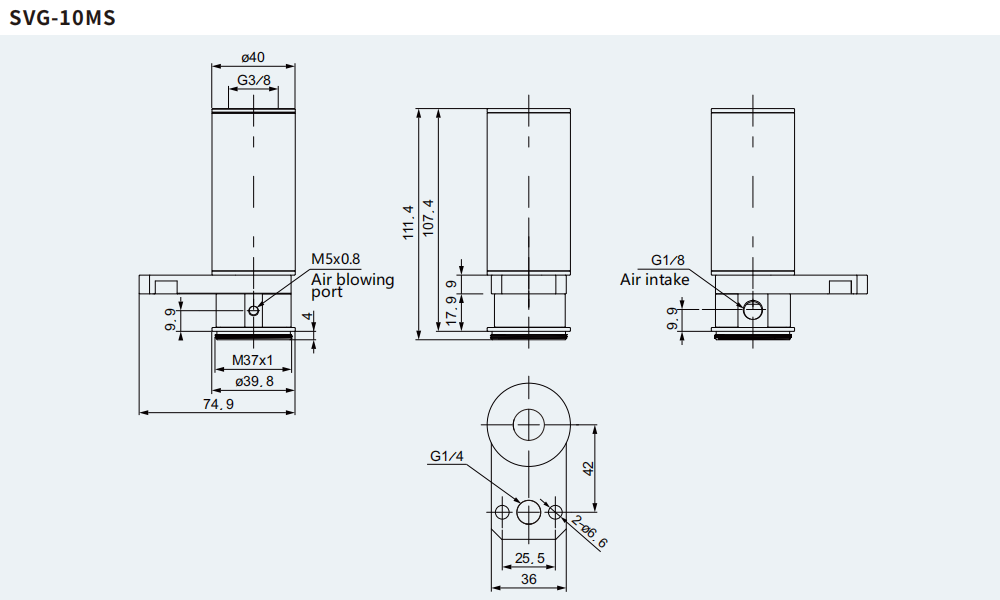

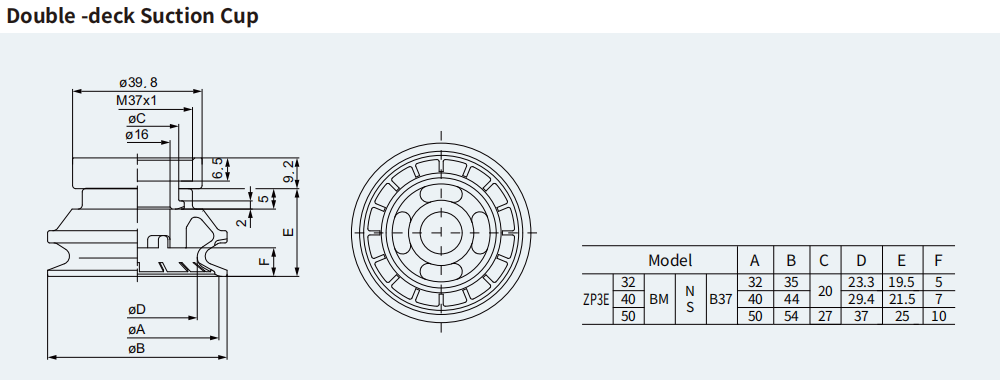

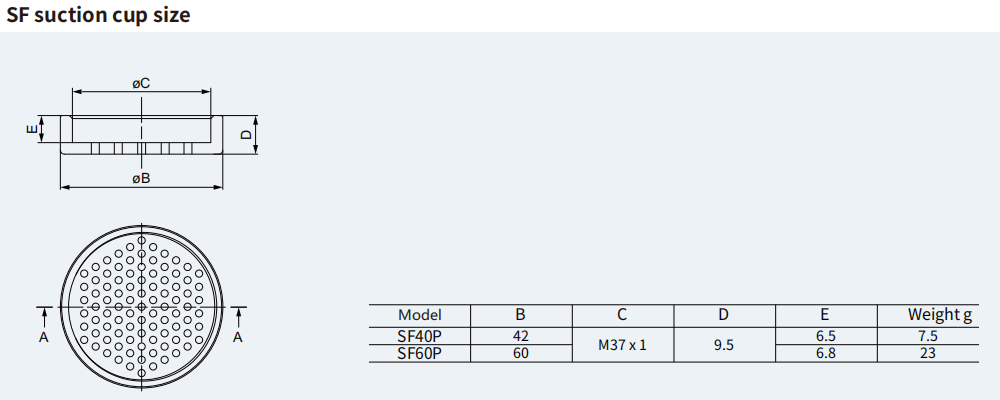

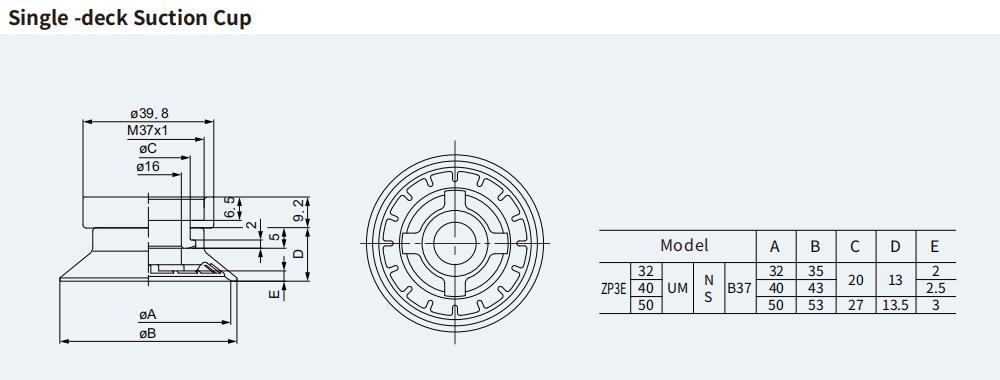

Dimensions
Large Flow Gripper
