Features

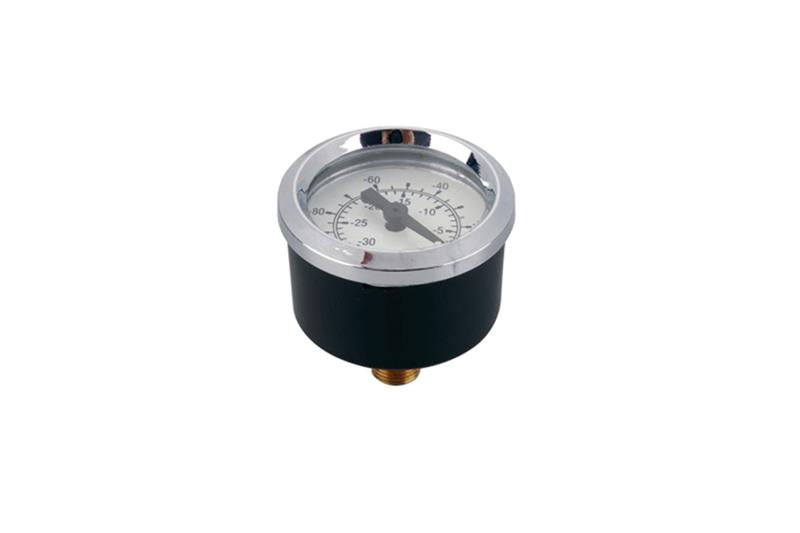

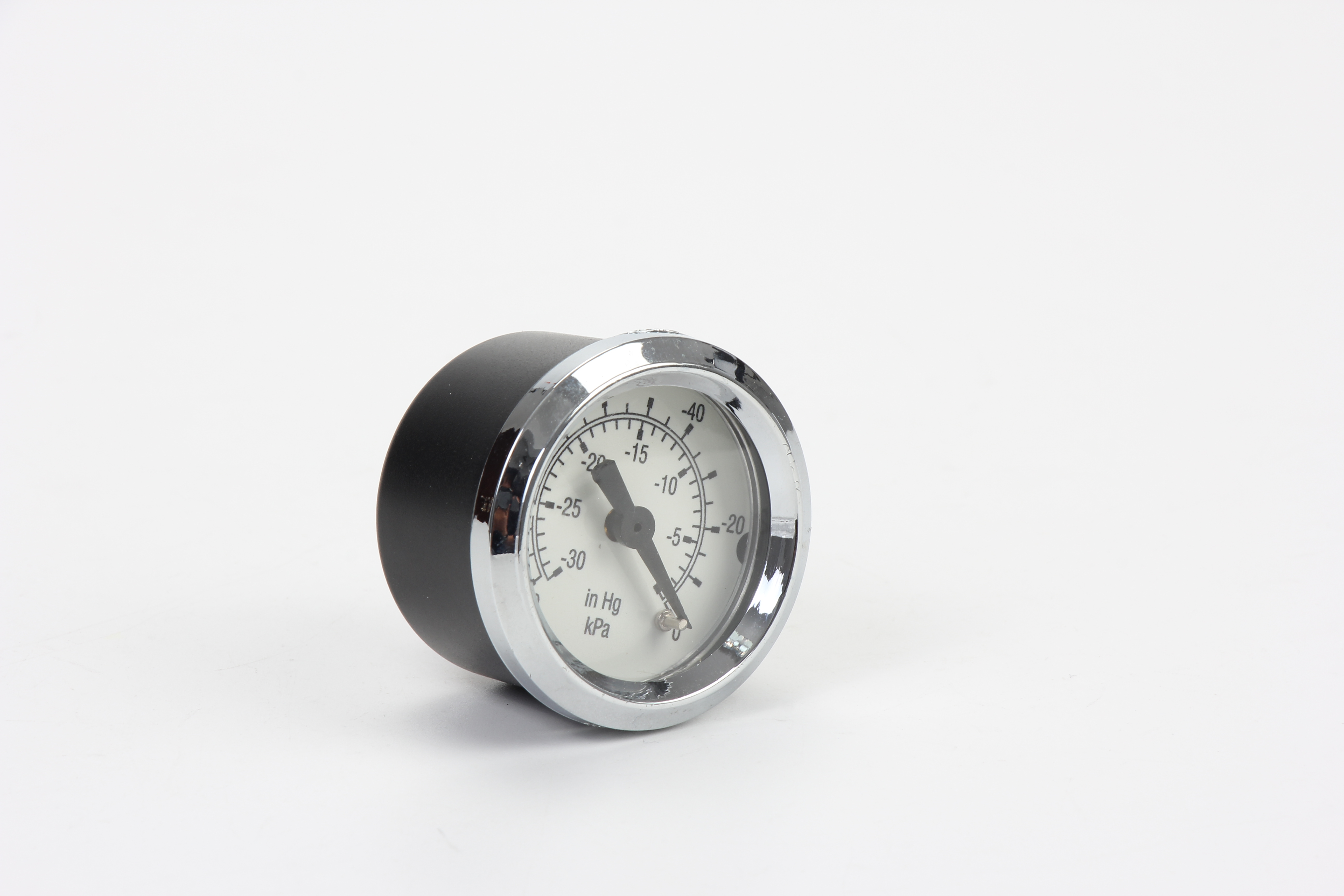

Mechanical Pressure Gauge
●The panel is made of acrylic and ABS black plastic for housing
●Back entry type mounting, universal specifications, easy to use
Selection Guide
RP Series Vacuum Accessories
RP 40 -□
① ② ③
| ① Series | ② Dial size |
③ Pressure type |
| RP |
40 - φ40mm | / - Default,negative Pressure |
| P - Positive Pressure | ||

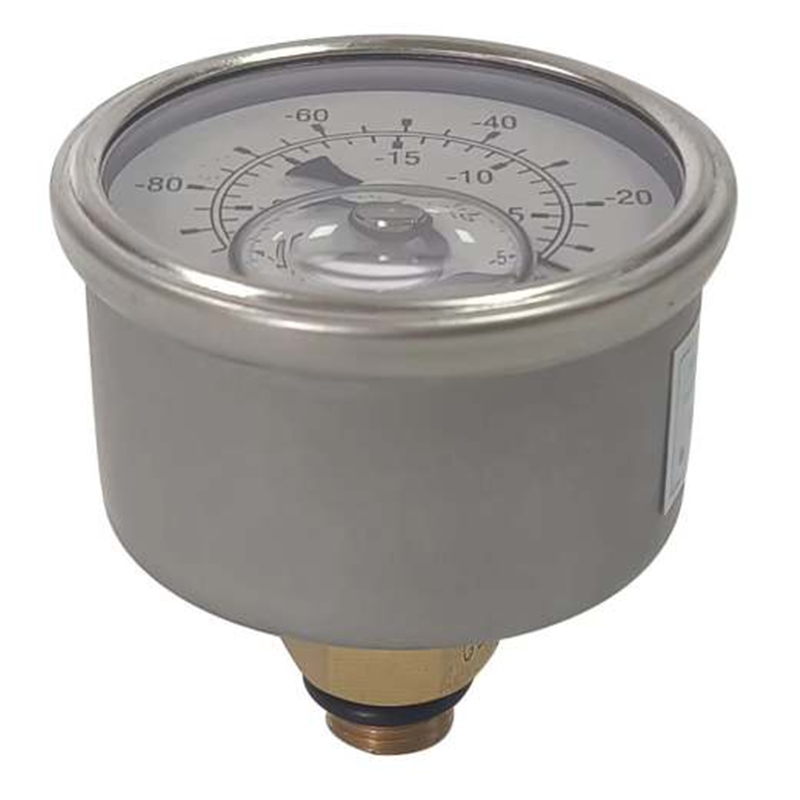

| S -Negative pressure(stainless steel with oil) |
※NOTE：the material of joint is brass
Technical parameters
| Model | Pressure type |
Pressure range | Dial size | Joint material | Thread | Installation |
|
RP40 |
Negative Pressure |
-100~0kPa |
φ40mm |
brass |
G1/8 male thread with M5 female thread inside |
Axial |
|
RP40-P |
Positive Pressure | 0~1MPa | ||||
|
RP40-S |
Negative Pressure | -100~0kPa |

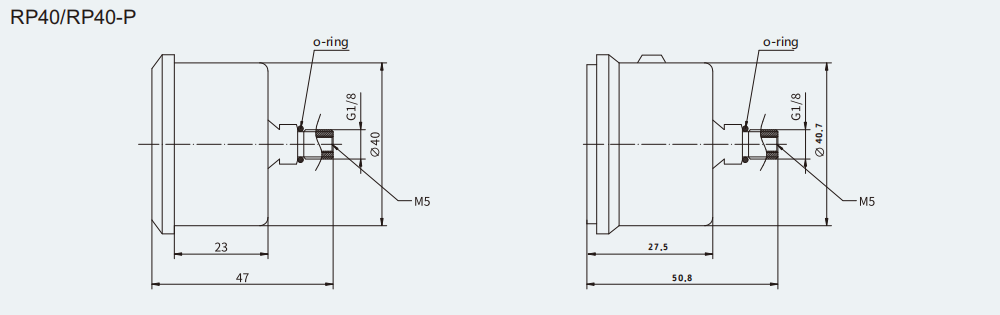

Dimensions
Mechanical Pressure Gauge
