Features

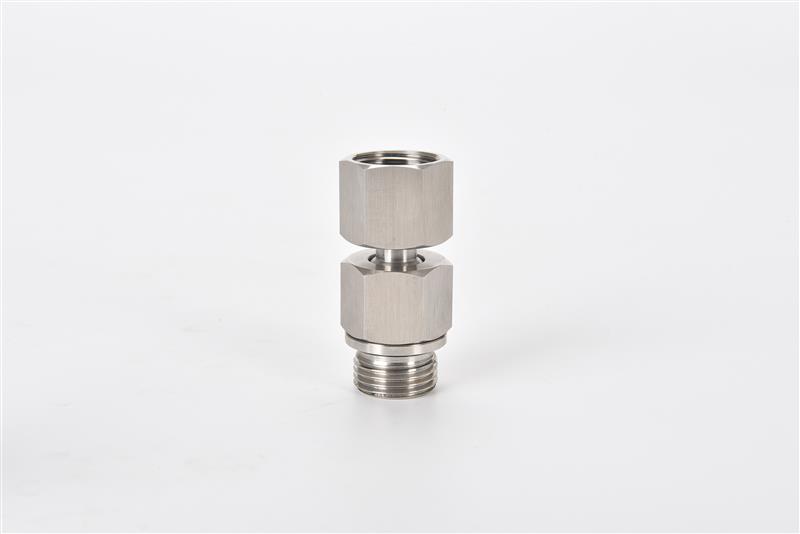

Universal Mounting Parts Ball Joint
Flexible connection for deflection in any direction with a maximum deflection angle of 12°
The ball and socket are equipped with sealing rings to prevent vacuum leakage during rotation
It is made of high strength steel and has good stability
Suitable for large suction cup to handle workpiece with an inclined surface
Selection Guide
HJB Series Mounting Parts
HJB -G1M
① ②
| ① Series | ② Connection specifications |
| HJB |
M10M - M10×1.25 male thread |
| G1M - G1/8 male thread | |
| G2M - G1/4 male thread | |
| G3M - G3/8 male thread | |
| G4M - G1/2 male thread |

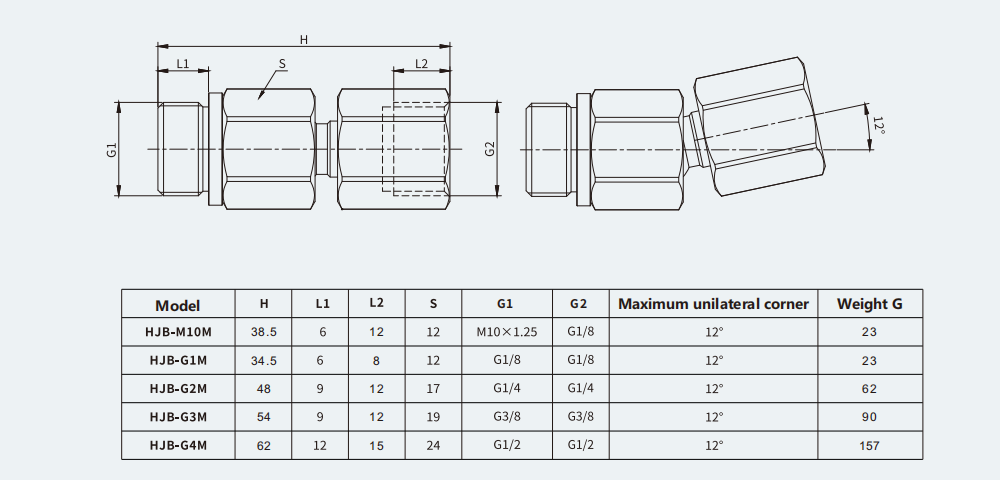

Dimensions

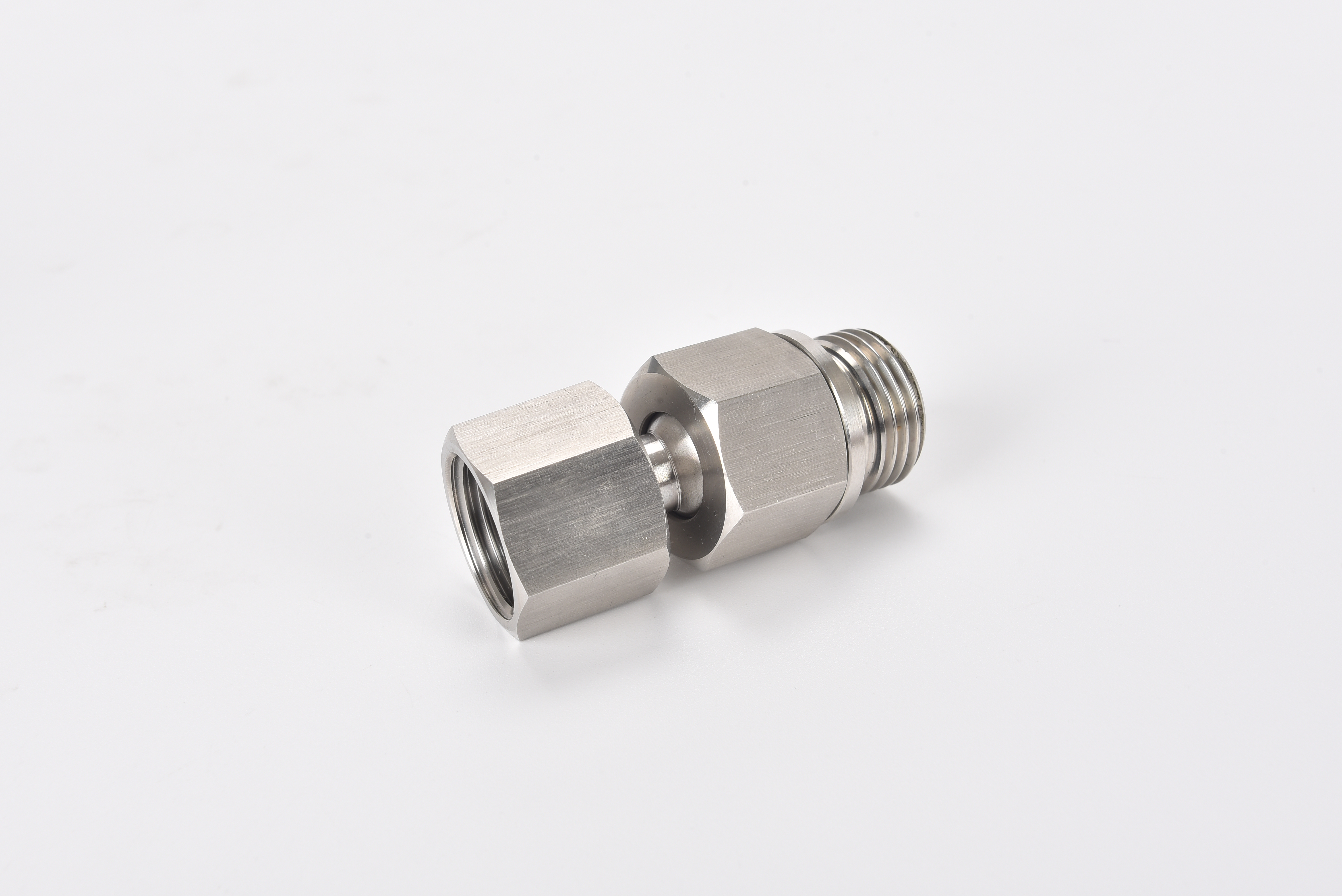

Universal Mounting Parts Ball Joint
