HGP Series

Blower Type Vacuum Gripper

●Built-in non-return valve system can be selected

●The housing is made of high-quality aluminum alloy

●External vacuum generator or blower can be connected

●Suction cup type and sponge type are optional for adsorption surface

HGP Series Vacuum Grippers

HGP 130 -1234 V -3 F 20 -E -□

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

① Series	② Specification	③ Dimension SPONGE ONLY	③ Dimension SUCTION CUP ONLY	④ Valve specifications	⑤ Sponge type	⑥ Material of adsorption surface	⑦ Thickness(Sponge only)	⑧ Vacuum type	⑨ Bellows joint
HGP	130 - 130mm	182 - 182mm	192 - 192mm	V - With non-return valve(Ball valve structure) L - Without non-return valve(Throttling hole structure)	3 - PA03 4 - PA04 5 - PA05 1 - PA01	F - Sponge	20 - 20mm 30 - 30mm 20F - 20mm with dustproof mesh 30F - 30mm with dustproof mesh	A - Default,with built-in vacuum generator	32 - φ32mm 60 - φ60mm
		218 - 218mm	238 - 238mm
		262 - 262mm	284 - 284mm
		316 - 316mm	330 - 330mm
		352 - 352mm	376 - 376mm
		442 - 442mm	468 - 468mm
		550 - 550mm	560 - 560mm
		640 - 640mm	652 - 652mm			B40 - 2.5 layer suction cup dia.40mm
		712 - 712mm	744 - 744mm
		838 - 838mm	836 - 836mm
		910 - 910mm	928 - 928mm
		1000 - 1000mm	1020 - 1020mm
		1234 - 1234mm	1250 - 1250mm
		1432 - 1432mm	1434 - 1434mm

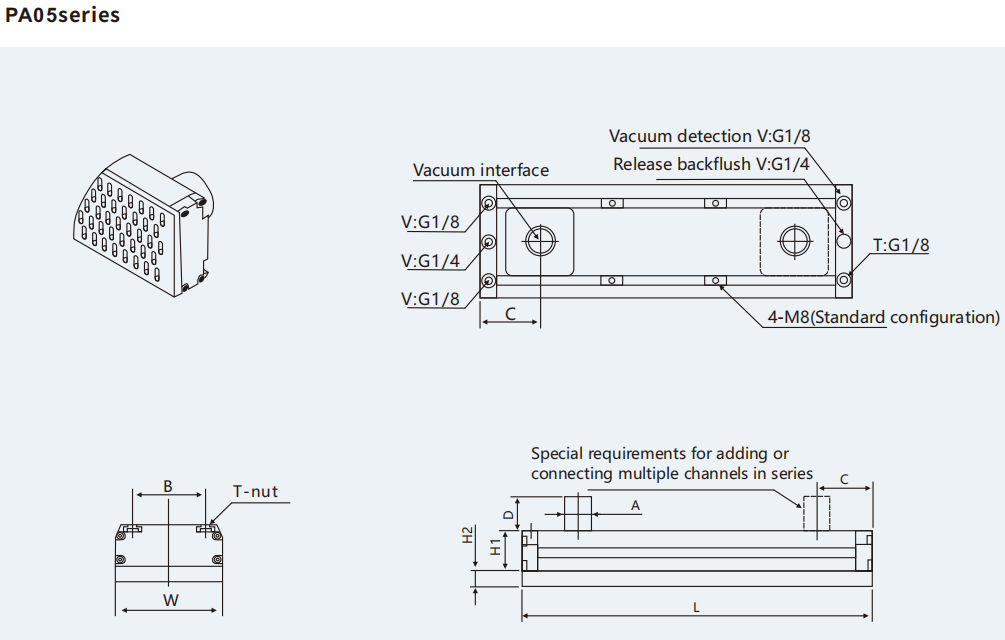

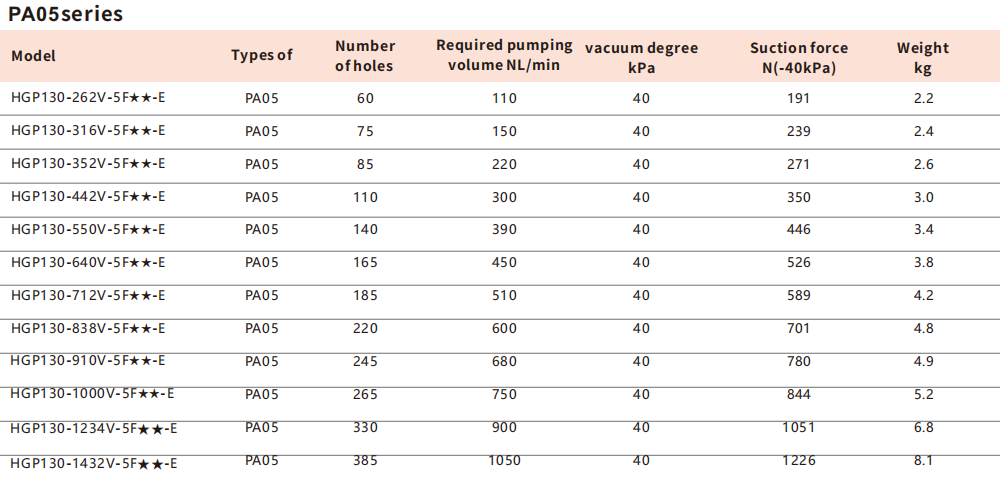

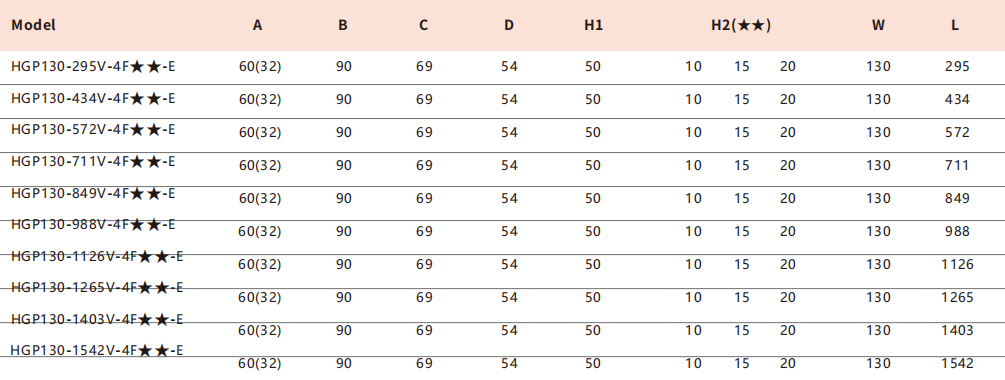

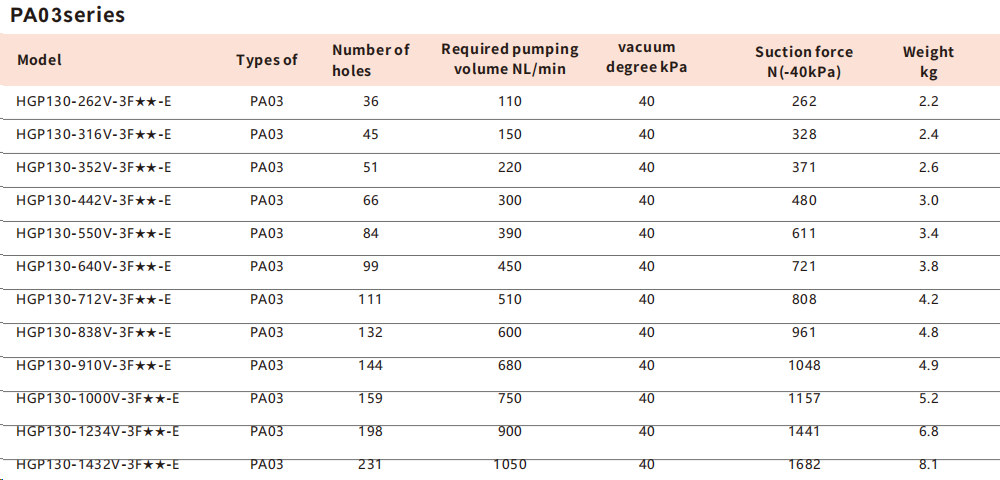

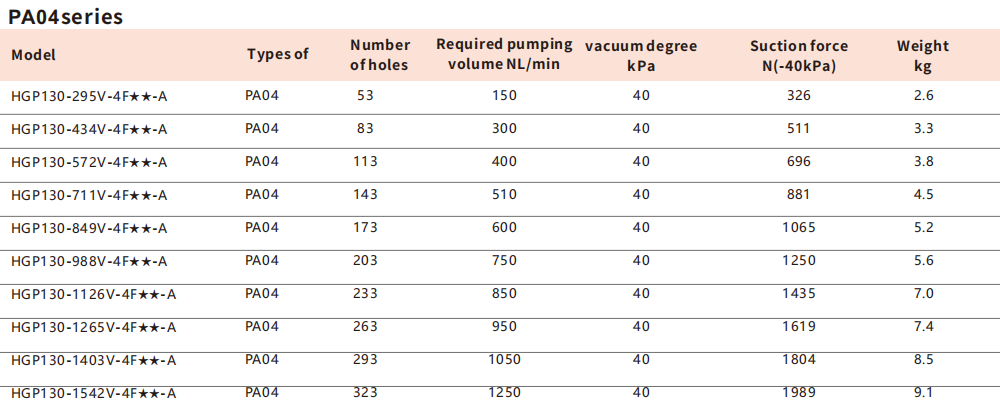

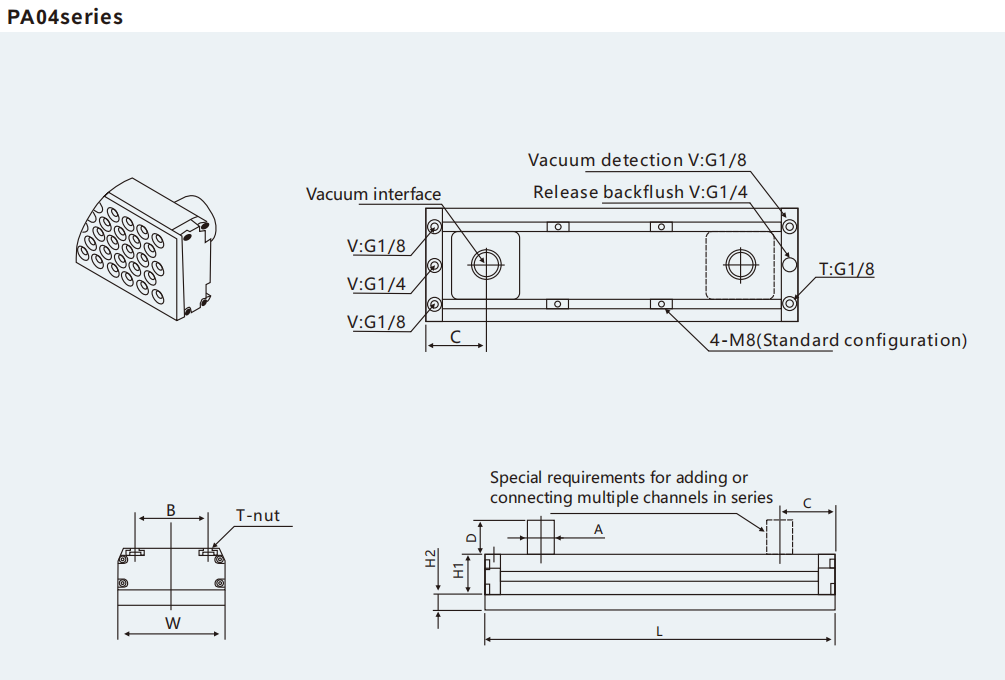

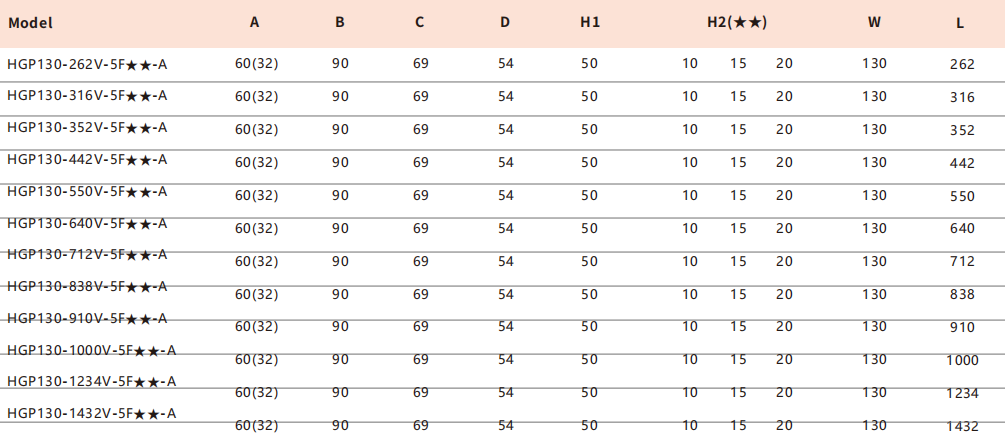

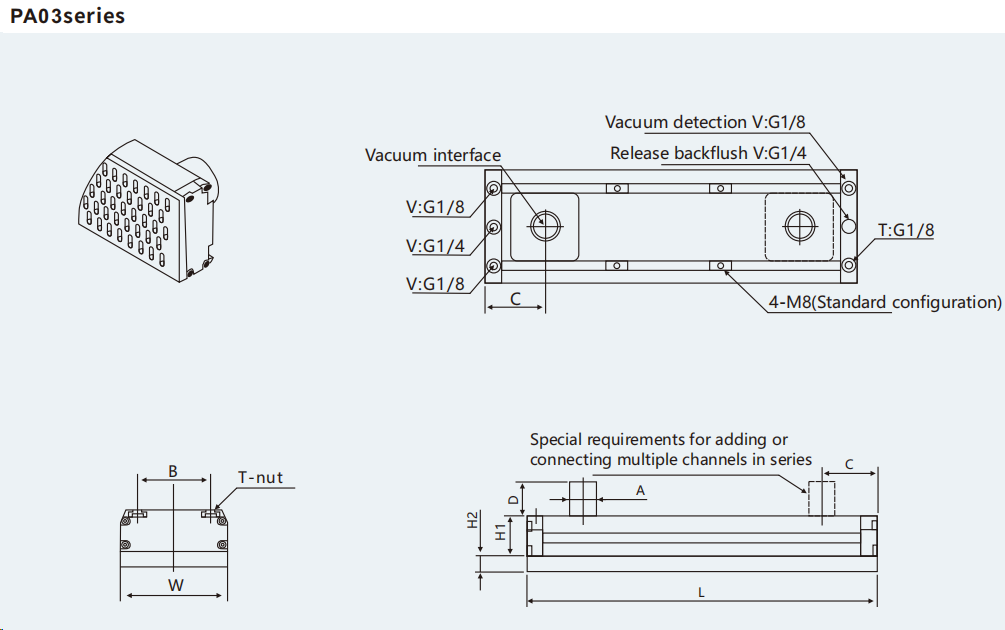

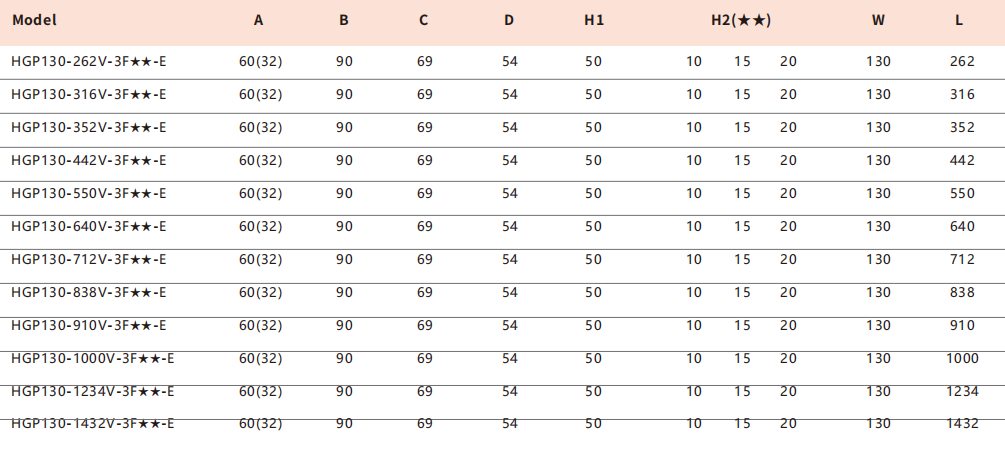

SELECTION CODE FOR SPONGE

HGP 130 -1234 PA03 20 FM

① ② ③ ④ ⑤

① Width	② Length SPONGE ONLY	② Length SUCTION CUP ONLY	③ Sponge type	④ Thickness	⑤ Sponge type
130 - 130mm	182 - 182mm	192 - 192mm	PA03 PA04 PA05 PA01	20 30	/ - Default,basic type FM - With dustproof mesh
	218 - 218mm	238 - 238mm
	262 - 262mm	284 - 284mm
	316 - 316mm	330 - 330mm
	352 - 352mm	376 - 376mm
	442 - 442mm	468 - 468mm
	550 - 550mm	560 - 560mm
	640 - 640mm	652 - 652mm
	712 - 712mm	744 - 744mm
	838 - 838mm	836 - 836mm
	910 - 910mm	928 - 928mm
	1000 - 1000mm	1020 - 1020mm
	1234 - 1234mm	1250 - 1250mm
	1432 - 1432mm	1434 - 1434mm
