Features

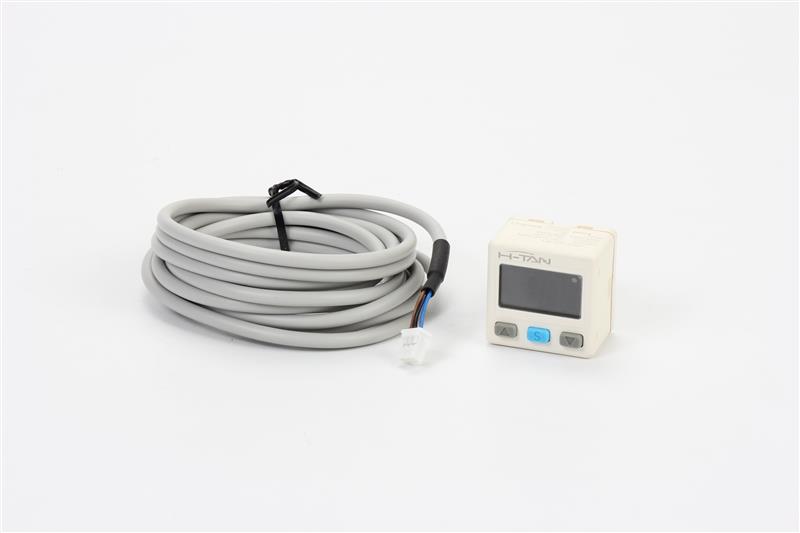

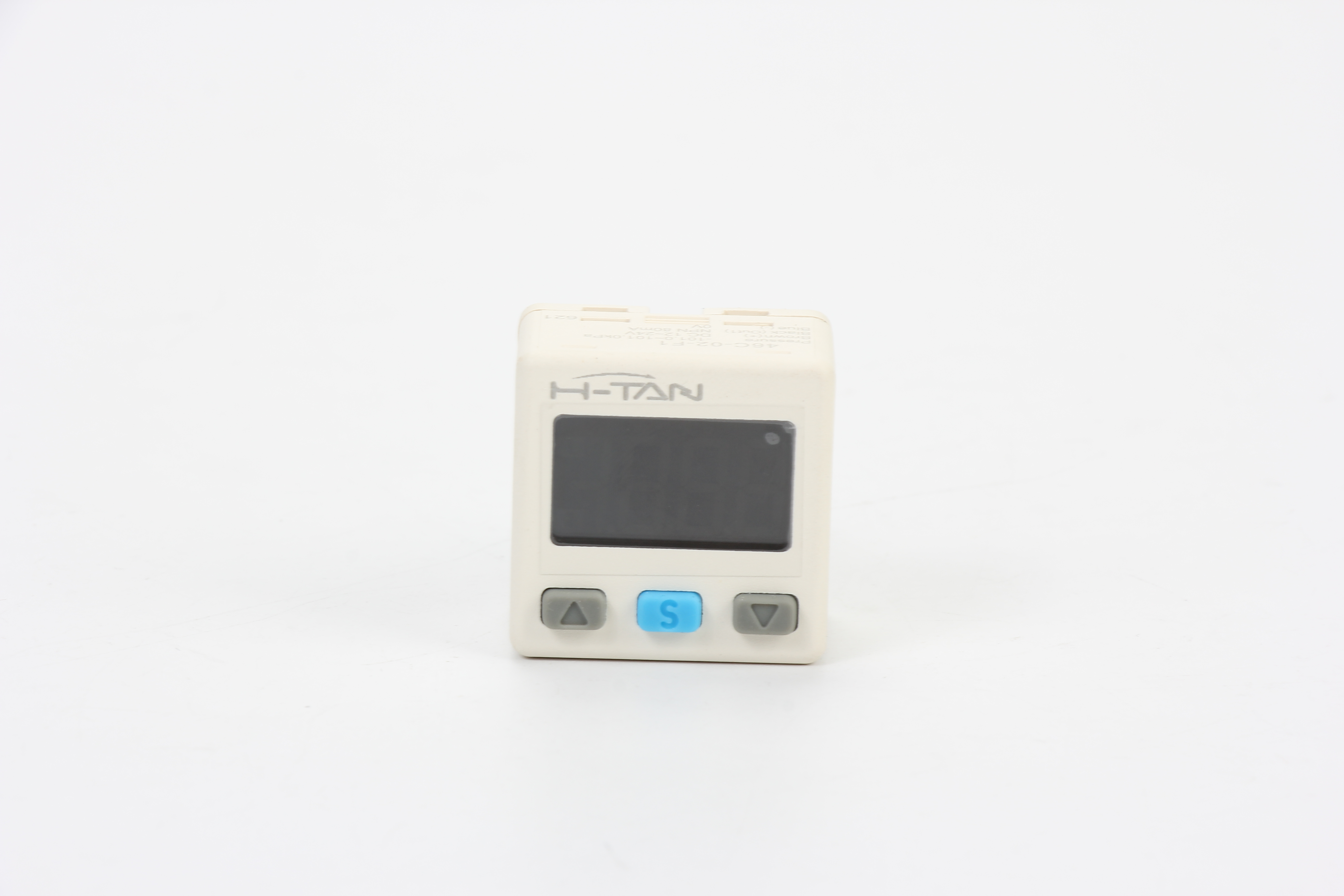

High-precision Digital Pressure Switch
●4-digit seven-segment LED display
●Parameter values can be displayed directly on the screen
●Pressure units can be converted and displayed on the screen
●Digital display electronic pressure switch, optional two-color display
Selection Guide
D/XP Series Vacuum Accessories
DP 2 -010 -01
① ② ③ ④
| ① Series | ② Pressure type |
③ Output type | ④ Connecting diameter |
| DP - Basic type |
2 - Positive (-0.1MPa~1MPa) |
040 - NPN | 01 - R1/8 M5 |
| 041 - PNP | 02 - G1/8 M5 | ||
| 000 - 1NPN 1PNP(adjustable) | 03 - NPT1/8 M5 | ||
| XP - Precision type |
5 - Compound (-100KPa~100KPa) |
080 - 1NPN 1PNP(adjustable) 1 Analog output (1-5V) | 04 - M5 |
| 081 - 1NPN 1PNP(adjustable) 1 Analog output (4-20mA) | |||
| 083 - 1NPN/PNP(adjustable) RS485 |
※NOTE：1. The corresponding output type for DP is: 040/041;
2. The corresponding output type for XP is: 000/080/081/083
Technical parameters
| Model | DP2/XP2 | DP5/XP5 | |
| Rated Pressure Range | -0.1MPa~1.0MPa | -100~100kPa | |
| Set Pressure Range | -0.1MPa~1.0MPa | -100~100kPa | |
| Pressure Resistance | 1.5MPa | 500kPa | |
| Applicable Fluids | Non corrosive gases |
||
|
Supply Voltage |
DC12~24V±5% |
||
|
Consumption Current |
24V 30mA MAX. | 12V 60mA MAX. | |
|
Compare Outputs |
NPN O.C Output：80mA/DC 24V MAX. Perhaps PNP O.C Output：80mA/DC 24V | ||
|
Repetitive Accuracy |
±0.2%FS | ||
|
Reaction Time |
Select through button operation 2.5ms,5ms,10ms,25ms,50ms,100ms,250ms,500ms,1000ms,5000ms |
||
|
Analog output quantity |
Voltage Output |
0.6~5V | 1~5V |
| linearity:±1%FS Output Impedance:1KΩ | |||
|
Current Output |
2.4~20mA(Or slightly smaller) |
4~20mA(Or slightly smaller) |
|
|
Linearity: ± 1% FS Maximum load impedance: 300 Ω When the power supply voltage is12V, 600 Ω When the power supply voltage is 12V, minimum load impedance: 50 Ω |
|||
|
Temperature range |
Operation Temperature:0~50℃ Storage Temperature:-10~60℃(No condensation, no icing) | ||
|
Humidity range |
35~85%RH | ||
|
Temperature characteristic |
±0.2%FS(25℃) | ||
|
Protection level |
IP40 | ||
|
Material Quality |
Shell: Nylon fiberglass LCD display screen: LCD acrylic Pressure hole: hexagonal copper nickel plated Sealing ring: H-NBR Switch: Silicone rubber |
||

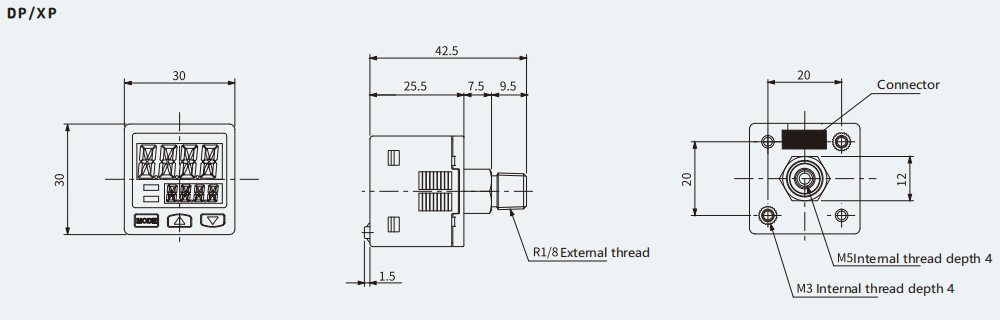

Dimensions
